008399026010302 Datasheet PDF - AVX

Manufacturer:

AVX

Category:

Wire to Board Connector

Description:

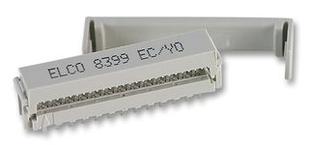

AVX INTERCONNECT 008399026010302 Wire-To-Board Connector, Transition, 2.54mm, 26Contacts, Header, 8399 Series, IDC / IDT, 2Rows

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

008399026010302 Datasheet (2 Pages)

008399026010302 Specifications

TYPE

DESCRIPTION

Number of Contacts

26 Contact

Gender

Male

Mounting Style

PC Board

Contact Plating

Tin

Insulation Resistance

1000 MΩ

Number of Rows

2 Row

Pin Pitch

2.54 mm

Flammability Rating

UL 94 V-0

Contact Current Rating

1 A

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

View Datasheet >

008399026010302 Environmental

008399026010302 Function Overview

008399026010302 Documents

008399026010302 Datasheet

AVX

2 Pages / 0.03 MByte

008399026010302 Other Datasheet PDF

AVX

2 Pages / 0.87 MByte
