09 02 132 7931 Datasheet PDF - Harting Technology Group

Manufacturer:

Harting Technology Group

Category:

DIN 41612 Connectors

Description:

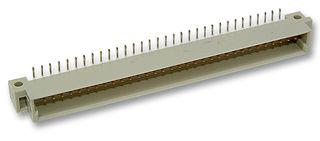

HARTING 09 02 132 7931 DIN 41612 Connector, Type B Series, 32Contacts, Plug, 2.54mm, 1 Row, a

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

09 02 132 7931 Datasheet (1 Pages)

09 02 132 7931 Datasheet PDF (1 Pages)

View Datasheet

Click page to view the detail

09 02 132 7931 Specifications

TYPE

DESCRIPTION

Number of Contacts

32 Contact

Gender

Male

Mounting Style

Through Hole

Contact Plating

Gold

Current Rating

2 A

Insulation Resistance

1000000 MΩ

Number of Rows

1 Row

Pin Pitch

2.54 mm

Flammability Rating

UL 94 V-0

Number of Positions

32 Position

Contact Resistance

15 mΩ

Number of Mating Cycles

50 Cycle

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-65 ℃

View Datasheet >

09 02 132 7931 Environmental

09 02 132 7931 Function Overview

09 02 132 7931 Documents

09 02 132 7931 Datasheet

Harting Technology Group

1 Pages / 0.19 MByte

09 02 132 7931 Drawing Diagrams

Harting Technology Group

1 Pages / 0.05 MByte
