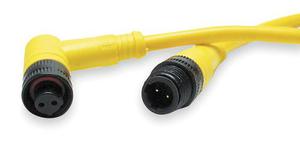

103000A01F120
$ 53

103000A01F120 Datasheet PDF - Molex

Manufacturer:
Molex
Category:
Cables & Wire
Case Package:
600
Description:
Cable Assembly Pigtail 3.66m 16AWG Circular 3POS F Mini-Change® Bag
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
103000A01F120 Datasheet PDF (2 Pages)
View Datasheet
Click page to view the detail

103000A01F120 Specifications

TYPE
DESCRIPTION
Number of Contacts
3 Contact
Gender
Female
Wire Gauge
16.0 AWG
Contact Plating
Gold over Nickel
Voltage Rating (DC)
600 V
Current Rating
7.00 A
Case/Package
600
Halogen Free Status
Not Reviewed
Orientation
Straight
Current Rating (Max)
13A/触头
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-20 ℃
Voltage Rating (Max)
600 V

103000A01F120 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bag
Color
Yellow
Contact Material
Brass
Size-Length
3.66 m
Cable Length
3.66 m
Jacket Material
PVC

103000A01F120 Documents

103000A01F120 Other Datasheet PDF
Molex
2 Pages / 0.02 MByte
103000A01F120 Notice File
Molex
1 Pages / 0.15 MByte
