$ 32.904

103002A01F060 Datasheet PDF - Molex

Manufacturer:

Molex

Case Package:

600

Description:

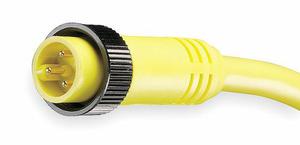

Single End Cordset Straight Male Mini Single Keyway 600VAC/DC 13A - 1300060534

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

103002A01F060 Datasheet (2 Pages)

103002A01F060 Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

103002A01F060 Specifications

TYPE

DESCRIPTION

Number of Contacts

3 Contact

Case/Package

600

Current Rating (Max)

13A/触头

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-20 ℃

Voltage Rating (Max)

600 V

View Datasheet >

103002A01F060 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Color

Yellow

Contact Material

Brass

Cable Length

1.83 m

View Datasheet >

103002A01F060 Environmental

103002A01F060 Documents

103002A01F060 Datasheet

Molex

2 Pages / 0.11 MByte
