11.0592MHZ MJ/30/30/40/12PF Datasheet PDF - Euroquartz

Manufacturer:

Euroquartz

Category:

Crystals

Case Package:

SMD

Description:

EUROQUARTZ 11.0592MHz MJ/30/30/40/12pF Crystal, 11.0592MHz, SMD, 5mm x 3.2mm, 30ppm, 12pF, 30ppm, MJ Series

Pictures:

3D Model

Symbol

Footprint

Pinout

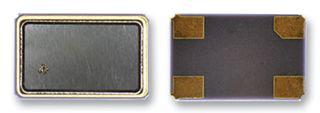

Product Pictures

11.0592MHZ MJ/30/30/40/12PF Datasheet PDF (1 Pages)

View Datasheet

Click page to view the detail

11.0592MHZ MJ/30/30/40/12PF Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Frequency

11.0592 MHz

Number of Pins

4 Pin

Frequency Stability

±30 ppm

Frequency Tolerance

±30 ppm

Case/Package

SMD

Load Capacitance

12 pF

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

11.0592MHZ MJ/30/30/40/12PF Size & Package

TYPE

DESCRIPTION

Packaging

Cut Tape (CT)

11.0592MHZ MJ/30/30/40/12PF Environmental

11.0592MHZ MJ/30/30/40/12PF Documents

11.0592MHZ MJ/30/30/40/12PF Other Datasheet PDF

Euroquartz

1 Pages / 0.22 MByte
