Part 3D Model

$ 0.137

151031VS04000 Datasheet PDF - Wurth Electronics

Manufacturer:

Wurth Electronics

Category:

Based LEDs

Case Package:

T-1

Description:

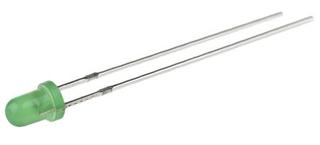

WURTH ELEKTRONIK 151031VS04000 LED, Green, Through Hole, T-1 (3mm), 30mA, 2.1V, 570nm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

151031VS04000 Datasheet (8 Pages)

151031VS04000 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Case/Package

T-1

Number of Positions

2 Position

Forward Voltage

2.1 V

Wavelength

570 nm

Luminous Intensity

120 mcd

Viewing Angle

40°

Peak Wavelength

573 nm

Test Current

20 mA

Forward Current

30 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

View Datasheet >

151031VS04000 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Color

Green

Size-Height

5.55 mm

View Datasheet >
