151033BS03000
Part 3D Model
$ 0.162

151033BS03000 Datasheet PDF - Wurth Electronics

Manufacturer:
Wurth Electronics
Category:
Based LEDs
Case Package:
T-1
Description:

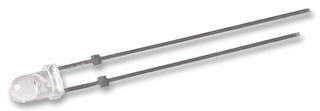

WURTH ELEKTRONIK 151033BS03000 LED, Blue, Through Hole, T-1 (3mm), 30mA, 2.8V, 470nm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
151033BS03000 Datasheet (9 Pages)

151033BS03000 Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Case/Package
T-1
Number of Positions
2 Position
Forward Voltage
2.8 V
Wavelength
470 nm
Luminous Intensity
3.8 cd
Viewing Angle
30°
Peak Wavelength
465 nm
Test Current
20 mA
Forward Current
30 mA
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
40 ℃
View Datasheet >

151033BS03000 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bulk
Color
Blue
Size-Height
5.55 mm
View Datasheet >

151033BS03000 Documents

151033BS03000 Datasheet
Wurth Electronics
9 Pages / 1.84 MByte
151033BS03000 Other Datasheet PDF
Wurth Electronics
9 Pages / 1.83 MByte
151033BS03000 Notice File
Wurth Electronics
2 Pages / 0.06 MByte
