15150502601000 Datasheet PDF - Harting Technology Group

●har-flex® is a general-purpose PCB connector series based on a 1.27 mm grid with SMT termination technology.

●With its straight, angled and cable variants, har-flex® provides connectivity solutions for many different board-to-board and cable-to-board applications. The different stacking heights of the mezzanine connectors and the flexible IDC connector cable lengths offer a high degree of freedom to the system design.

●A broad choice of configurations between 6 and 100 contacts in even numbered positions is available.

●HARTING har-flex® Connectors provide 100 percent coplanarity testing and standard fitting with pick and place pads that guarantee a simple, fully automatic and assembly of the PCBs.

●Applications

● Controllers

● Drives

● Sensors

●Features

● Robust design (solder hold-downs)

● Wide range of pin counts available (all even numbers from 6 - 100)

● 4 stacking heights from 8mm to 13.8mm

● SMT termination for reflow solder process

● Pick & Place pads for automatic assembly

● Tape & Reel packaging for pick-and-place machines

● Secure solder connection (coplanarity of termination pins

● Flexible tolerances of PCB distance due to a wiping length of 1.5mm

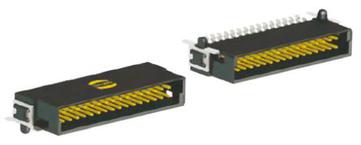

● MSL 1 The har-flex® angled connectors are made for right-angled motherboard-to-daughtercard applications and so called extender card applications (two angled connectors in one plane). The angled male connectors can be even mated with the cable connectors for flatband cables.
