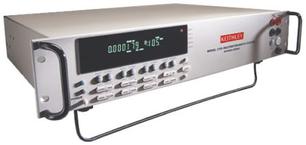

●This combines precision measurement, switching, and control in a single, tightly integrated enclosure for either rack-mounted or benchtop applications. These high performance test platforms offer alternatives to separate DMMs and switch systems, dataloggers/recorders, plug-in card data acquisition equipment, and VXI/PXI systems. System builders can create test solutions with a combination of channel count, cost per channel, and system performance. The input modules provide the flexibility to vary the channel count from 20 to 200 (2-pole), apply a stimulus to the device under test, route signals, control system components, and make precision measurements with up to 14 functions. Robust digital I/O capabilities can be used for triggering, handshaking with other automation equipment, and alarm limit outputs. Scan rates of up to 500 channels/second (up to 3500 readings/second on a single channel) will increase test productivity.

● Combines functions of DMM, switch system, and datalogger

● True 6-1/2 digit (22-bit) resolution

● Up to 200 differential input channels (with 300V isolation) for measurement and control

● Convenient front panel inputs

● Built-in measurement functions

● Ethernet, GPIB, RS-232 communications capabilities

● Free ExceLINX™-1A datalogging software

● Production test of electronic products and devices

● Accelerated stress testing (AST)

● Process monitor and control
