293D476X9016C2T Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Capacitors

Case Package:

6032

Description:

C 47uF ±10% 16V 2.5mm

Pictures:

3D Model

Symbol

Footprint

Pinout

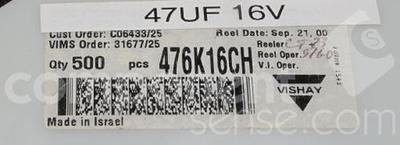

Product Pictures

Documentation:

293D476X9016C2T Datasheet (3 Pages)

Package Outline Dimension on1 Page

293D476X9016C2T Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

293D476X9016C2T Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Voltage Rating (DC)

16.0 V

Capacitance

47 µF

Equivalent Series Resistance (ESR)

1.00 Ω

Capacitance Tolerance

±10 %

Case/Package (SI)

6032-28

Case/Package

6032

Q-Factor

6.0

Part Family

293D

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-55 ℃

View Datasheet >

293D476X9016C2T Size & Package

TYPE

DESCRIPTION

Packaging

Tape & Reel (TR)

Size-Length

5.99 mm

Size-Width

3.20 mm

Size-Height

2.5 mm

View Datasheet >
