382811-8 Datasheet PDF - TE Connectivity

Manufacturer:

TE Connectivity

Category:

Jumpers

Case Package:

Description:

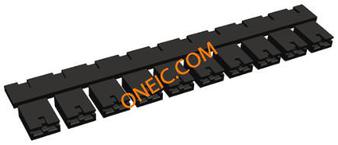

Connector Shunt Female 2Position 2.54mm Straight Stick

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

382811-8 Datasheet (42 Pages)

382811-8 Datasheet PDF (42 Pages)

View Datasheet

Click page to view the detail

382811-8 Specifications

TYPE

DESCRIPTION

Number of Contacts

2 Contact

Gender

Female

Mounting Style

PCB

Contact Plating

Gold

Current Rating

3 A

Insulation Resistance

1000 MΩ

Case/Package

Number of Rows

1 Row

Pin Pitch

2.54 mm

Flammability Rating

UL 94 V-0

Number of Positions

2 Position

Contact Current Rating

3.00 A

Current Rating (Max)

3A/触头

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-65 ℃

View Datasheet >

382811-8 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Housing Color

Black

Packaging

Box

Color

Black

Contact Material

Phosphor Bronze

Size-Length

5.08 mm

Size-Width

2.54 mm

Size-Height

6.35 mm

Operating Temperature

-65℃ ~ 105℃

Housing Material

Polyester

View Datasheet >

382811-8 Environmental

382811-8 Export Classifications

382811-8 Function Overview

382811-8 Documents

382811-8 Datasheet

TE Connectivity

42 Pages / 2.6 MByte

382811-8 Other Datasheet PDF

TE Connectivity

4 Pages / 0.29 MByte

382811-8 Drawing Diagrams

TE Connectivity

2 Pages / 0.09 MByte

382811-8 Other References

TE Connectivity

1 Pages / 0.18 MByte
