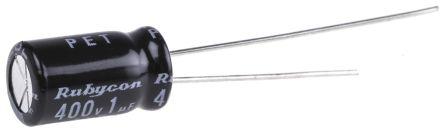

400LLE1MEFC6.3X11 Datasheet PDF - Rubycon

Manufacturer:

Rubycon

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

1uF ±20% 400V 48mA(105℃&100kHz)24mA(105℃&120 Φ6.3mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

400LLE1MEFC6.3X11 Datasheet (2 Pages)

400LLE1MEFC6.3X11 Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

400LLE1MEFC6.3X11 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

400 V

Capacitance

1 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

2.5 mm

Part Family

LLE

Ripple Current

24 mArms

Ripple Current (Low Frequency)

24mA @120Hz

Ripple Current (High Frequency)

48mA @100kHz

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating

400 V

View Datasheet >

400LLE1MEFC6.3X11 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Size-Height

11 mm

Size-Diameter

6.30 mm

Operating Temperature

-40℃ ~ 105℃

Minimum Packing Quantity

2000

Life (Hours)

12000h @105℃

View Datasheet >

400LLE1MEFC6.3X11 Environmental

400LLE1MEFC6.3X11 Export Classifications

400LLE1MEFC6.3X11 Function Overview

400LLE1MEFC6.3X11 Documents

400LLE1MEFC6.3X11 Datasheet

Rubycon

2 Pages / 0.12 MByte

400LLE1MEFC6.3X11 Other Datasheet PDF

Rubycon

2 Pages / 0.15 MByte
