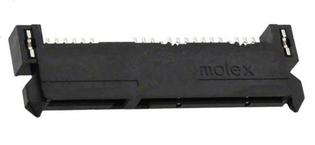

47018-2001 Datasheet PDF - Molex

Manufacturer:

Molex

Category:

Connectors

Description:

Conn SATA RCP 15Power/7Signal POS 1.27mm Solder RA SMD 22 Terminal 1Port Tray

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

47018-2001 Datasheet (10 Pages)

47018-2001 Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

47018-2001 Specifications

TYPE

DESCRIPTION

Number of Contacts

22 Contact

Gender

Female

Mounting Style

Surface Mount

Contact Plating

Gold

Voltage Rating (DC)

15.0 V

Current Rating

1.5 A

Insulation Resistance

1000 MΩ

Number of Rows

1 Row

Pin Pitch

1.27 mm

Glow Wire Compliant

Non-Compliant

Halogen Free Status

Not Reviewed

Orientation

Right Angle

Number of Circuits

22 Circuit

Number of Positions

22 Position

Number of Mating Cycles

500 Cycle

Current Rating (Max)

1.5A/触头

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-35 ℃

Voltage Rating (Max)

15 VDC

Voltage Rating

15 VDC

Maximum Contact Resistance (Max)

30 mΩ
