Part Datasheet Search > D-Subminiature Connectors > TE Connectivity > 5747846-4 Datasheet PDF
5747846-4
$ 2.628

5747846-4 Datasheet PDF - TE Connectivity

Manufacturer:
TE Connectivity
Category:
D-Subminiature Connectors
Case Package:
Metal
Description:

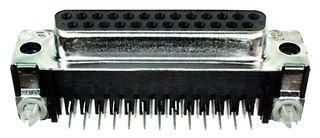

Connector D-Subminiature Socket 25Position 2.75mm Solder Right Angle Thru-Hole 25 Terminal 1Port
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
5747846-4 Datasheet (2 Pages)5747846-4 Application Note (12 Pages)
5747846-4 Datasheet PDF (2 Pages)
View Datasheet
Click page to view the detail

5747846-4 Specifications

TYPE
DESCRIPTION
Number of Contacts
25 Contact
Gender
Female
Mounting Style
Through Hole
Contact Plating
Gold, Tin
Number of Pins
25 Pin
Current Rating
6 A
Insulation Resistance
5000 Ω
Case/Package
Metal
Number of Rows
2 Row
Pin Pitch
2.77 mm
Orientation
Right Angle
Flammability Rating
UL 94 V-0
Number of Positions
25 Position
Voltage Rating
250 VAC
Maximum Contact Resistance (Max)
15 mΩ
View Datasheet >

5747846-4 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Housing Color
Black
Packaging
Tray
Color
Black
Contact Material
Phosphor Bronze
Size-Length
53.03 mm
Size-Width
18.79 mm
Size-Height
12.55 mm
Operating Temperature
-55℃ ~ 105℃
Housing Material
Thermoplastic
View Datasheet >

5747846-4 Documents

5747846-4 Datasheet
TE Connectivity
2 Pages / 0.07 MByte
5747846-4 Other Datasheet PDF
TE Connectivity
2 Pages / 0.07 MByte
5747846-4 Drawing Diagrams
TE Connectivity
37 Pages / 0.95 MByte
5747846-4 Application Note
TE Connectivity
12 Pages / 0.42 MByte
5747846-4 Features Description Parametrics
TE Connectivity
7 Pages / 1.13 MByte
