$ 0.396

5KP120A-E3/54 Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

TVS Diodes

Case Package:

P-600

Description:

P600 120V 193V 5000W

Pictures:

3D Model

Symbol

Footprint

Pinout

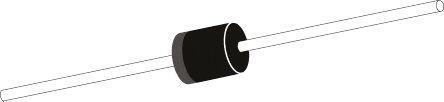

Product Pictures

5KP120A-E3/54 Datasheet PDF (5 Pages)

View Datasheet

Click page to view the detail

5KP120A-E3/54 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

P-600

Clamping Voltage

193 V

Max Repetitive Reverse Voltage (Vrrm)

120V

Test Current

5 mA

Max Breakdown Voltage

133 V

Peak Pulse Power

5000 W

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-55 ℃

Junction Temperature

-55℃ ~ 175℃

5KP120A-E3/54 Size & Package

TYPE

DESCRIPTION

Packaging

Tape & Reel (TR)

Size-Length

9.1 mm

Minimum Packing Quantity

800

5KP120A-E3/54 Environmental

5KP120A-E3/54 Documents

5KP120A-E3/54 Other Datasheet PDF

VISHAY

5 Pages / 0.07 MByte
