61082-142402LF Datasheet PDF - FCI Electronics

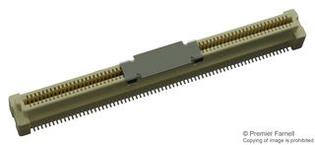

Thanks to FCI&s;s fine pitch connector 61082-142402LF header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This RCP connector&s;s 140 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 0.8 mm. It has a receptacle type gender. This is a 2-row connector. It has a maximum voltage rating of 100 VAC. It has a straight body orientation. This device has a maximum current rating of 0.8 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 61.8 mm long, 7.7 mm tall and 6.8 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 125 °C. 61082-142402LF is housed in liquid crystal polymer.
