678-1232-222F Datasheet PDF - Dialight

Manufacturer:

Dialight

Category:

Indicator Lights

Description:

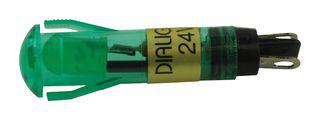

DIALIGHT 678-1232-222F LED Panel Mount Indicator, 100K Hours, Green, 6VDC, 8.2mm, 20mA, 41.43cd, Not Rated New

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

678-1232-222F Datasheet (3 Pages)

678-1232-222F Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

678-1232-222F Specifications

TYPE

DESCRIPTION

Number of Pins

2 Pin

Operating Voltage

6 VDC

Luminous Intensity

41.43 cd

Peak Wavelength

525 nm

Power Dissipation

108 mW

Test Current

20 mA

Forward Current

20 mA

Forward Current (Max)

30 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-30 ℃

Power Dissipation (Max)

108 mW

View Datasheet >

678-1232-222F Environmental

678-1232-222F Documents

678-1232-222F Datasheet

Dialight

3 Pages / 0.44 MByte

6781232222 Documents

678-1232-222F Datasheet PDF

Dialight

DIALIGHT 678-1232-222F LED Panel Mount Indicator, 100K Hours, Green, 6VDC, 8.2mm, 20mA, 41.43cd, Not Rated New

6781232222F Datasheet PDF

Dialight

Panel Indicator, 8.2mm, Green, 6VDC
