679105700 Datasheet PDF - Molex

Manufacturer:

Molex

Category:

Connectors

Case Package:

SMD

Description:

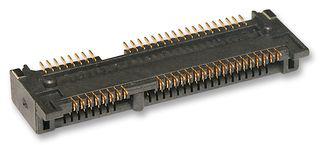

Conn Mini PCI Express Card Edge F 52POS 0.8mm Solder RA SMD Mini PCI Express Embossed T/R

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

679105700 Datasheet (1 Pages)

679105700 Datasheet PDF (1 Pages)

View Datasheet

Click page to view the detail

679105700 Specifications

TYPE

DESCRIPTION

Number of Contacts

52 Contact

Gender

Female

Mounting Style

Surface Mount

Contact Plating

Gold

Current Rating

1.10 A

Case/Package

SMD

Halogen Free Status

Not Reviewed

Number of Circuits

52 Circuit

View Datasheet >

679105700 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Color

Black

Contact Material

Phosphor Bronze

Size-Length

30 mm

Size-Width

10.2 mm

Size-Height

5.75 mm

View Datasheet >

679105700 Environmental

679105700 Function Overview

679105700 Documents

679105700 Datasheet

Molex

1 Pages / 0.03 MByte

679105700 Other Datasheet PDF

Molex

1 Pages / 0.34 MByte

679105700 Drawing Diagrams

Molex

3 Pages / 0.26 MByte

679105700 Notice File

Molex

2 Pages / 0.13 MByte
