Part Datasheet Search > Headers & Receptacles > Anderson Power Products > 6800G2 Datasheet PDF

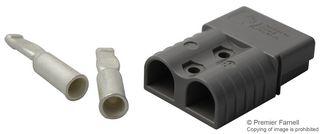

6800G2
$ 18.146
6800G2 Datasheet PDF (6 Pages)
View Datasheet
Click page to view the detail

6800G2 Specifications

TYPE
DESCRIPTION
Number of Contacts
2 Contact
Gender
Male
Mounting Style
Panel
Contact Plating
Silver
Current Rating
120 A
Case/Package
-
Number of Rows
1 Row
Number of Positions
2 Position
Current Rating (Max)
120 A
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-20 ℃
Voltage Rating
600 V

6800G2 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Housing Color
Gray
Color
Gray
Contact Material
Copper Alloy
Size-Height
104.65 mm
