75915-316LF Datasheet PDF - Amphenol

Board to Board & Mezzanine Connectors 16P 1R PCB MNT RECPT THRU MNT TOP ENTRY

CONN RCPT 16POS 0.1 GOLD PCB

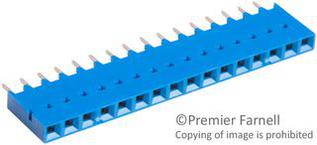

AMPHENOL FCI 75915-316LF Board-To-Board Connector, 2.54mm, 16Contacts, Receptacle, 75915 Series, Through Hole, 1Rows

AMPHENOL FCI 75915-316LF Board-To-Board Connector, 2.54mm, 16Contacts, Receptacle, 75915 Series, Through Hole, 1Rows

Conn Socket Strip RCP 16POS 2.54mm Solder ST Thru-Hole Tube

Mount this socket strip 75915-316HLF header connector from FCI on a jumper post on your PCB to support physical configuration options. This RCP connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 1000 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 75915-316HLF is housed in gray thermoplastic. It uses the solder termination method. This product is 40.56 mm long, 8.5 mm tall and 2.5 mm deep.

CONN RCPT 16POS 0.1 GOLD PCB
