860160374022 Datasheet PDF - Wurth Electronics

Manufacturer:

Wurth Electronics

Category:

Single Capacitors

Case Package:

Radial

Description:

390uF ±20% 16V 612mA(100kHz) Φ8mm

Pictures:

3D Model

Symbol

Footprint

Pinout

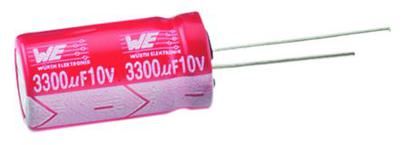

Product Pictures

Documentation:

860160374022 Datasheet (7 Pages)

860160374022 Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

860160374022 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Voltage Rating (DC)

16 V

Capacitance

390 µF

Capacitance Tolerance

±20 %

Case/Package

Radial

Part Family

WCAP-ATLL

Ripple Current

612mA @100kHz

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

16 V

View Datasheet >

860160374022 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Size-Height

11.5 mm

Size-Diameter

Φ8mm

Operating Temperature

-55℃ ~ 105℃

Life (Hours)

4000h @105℃

View Datasheet >

860160374022 Environmental

860160374022 Function Overview

860160374022 Documents

860160374022 Datasheet

Wurth Electronics

7 Pages / 0.47 MByte

860160374022 Other Datasheet PDF

Wurth Electronics

7 Pages / 0.47 MByte
