Part Datasheet Search > Crimp Contacts & Accessories > TE Connectivity > 87809-1 Datasheet PDF
87809-1
$ 0.115

87809-1 Datasheet PDF - TE Connectivity

Manufacturer:
TE Connectivity
Category:
Crimp Contacts & Accessories
Case Package:
-
Description:

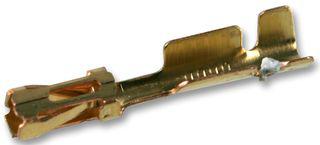

AMP - TE CONNECTIVITY 87809-1Contact, AMPMODU MOD V Series, Socket, Crimp, 22AWG, Gold Plated Contacts, Mod V Series Connectors
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
87809-1 Datasheet (98 Pages)
Package Footprint Pad Layout on11 Page
87809-1 User Reference Manual Guide (6 Pages)87809-1 Application Note (10 Pages)
87809-1 Datasheet PDF (98 Pages)
View Datasheet
Click page to view the detail

87809-1 Specifications

TYPE
DESCRIPTION
Number of Contacts
1 Contact
Gender
Female
Wire Gauge
22AWG ~ 26AWG
Contact Plating
Gold
Voltage Rating (AC)
250 V
Current Rating
3.00 A
Insulation Resistance
5000 MΩ
Case/Package
-
Contact Resistance
12 mΩ
Contact Current Rating
3.00 A
Current Rating (Max)
3 A
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-65 ℃
Voltage Rating (Max)
250 VAC
Voltage Rating
250 V
Maximum Contact Resistance (Max)
12 mΩ
View Datasheet >

87809-1 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tape & Reel (TR)
Contact Material
Phosphor Bronze
Size-Length
11.45 mm
Size-Width
2.03 mm
Operating Temperature
-65℃ ~ 105℃
View Datasheet >

87809-1 Documents

87809-1 Datasheet
TE Connectivity
98 Pages / 4.2 MByte
87809-1 User Reference Manual Guide
TE Connectivity
6 Pages / 1.17 MByte
87809-1 Other Datasheet PDF
TE Connectivity
4 Pages / 0.29 MByte
87809-1 Drawing Diagrams
TE Connectivity
2 Pages / 0.08 MByte
87809-1 Application Note
TE Connectivity
10 Pages / 0.74 MByte
87809-1 Features Description Parametrics
TE Connectivity
12 Pages / 0.99 MByte
87809-1 Product Catalog
TE Connectivity
36 Pages / 0.41 MByte
