A165E-S-02 Datasheet PDF - Omron

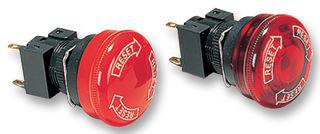

●The A165E-S-02 is a double-pole single-throw (DPST) non-illuminated Emergency-stop Switch with solder terminals, NC contact and red pushbutton. The emergency-stop switch features separate construction that allows the switch to be separated for easier wiring and one-piece construction that allows easier handling. Direct opening mechanism to open contacts in emergencies, such as when they are welded. Includes a safety lock to prevent misuse.

● 100MR at 500VDC Minimum insulation resistance

● IP65 Protection rating (oil-resistant)

● -10 to 55°C Operating temperature range

●If the operation unit is separated from the switch unit, the equipment will not stop, creating a hazardous condition.
