B82111E0000C023 Datasheet PDF - Epcos

Manufacturer:

Epcos

Category:

Single Inductors

Description:

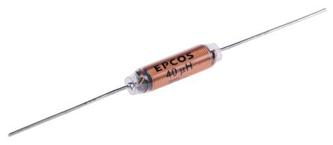

EPCOS B82111E0000C023 Axial Leaded High Frequency Inductor, B82111E Series, 40µH, 2A, 0.18Ω, ± 20%, 90MHz

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

B82111E0000C023 Datasheet (7 Pages)

Package Outline Dimension on3 Page

Part Numbering System on5 Page

B82111E0000C023 User Reference Manual Guide (2 Pages)

B82111E0000C023 Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

B82111E0000C023 Specifications

TYPE

DESCRIPTION

Mounting Style

Axial

Number of Pins

2 Pin

Current Rating

2.00 A

Inductance

40 µH

Self Resonant Frequency

90 MHz

Resonant Frequency

90.0 MHz

Inductance Tolerance

±20 %

Test Frequency

0.1 MHz

Current Rating (DC)

2 A

Resistance (DC Max)

0.18 Ω

View Datasheet >

B82111E0000C023 Environmental

B82111E0000C023 Function Overview

B82111E0000C023 Documents

B82111E0000C023 Datasheet

Epcos

7 Pages / 0.29 MByte

B82111E0000C023 User Reference Manual Guide

Epcos

2 Pages / 0.37 MByte

B82111E0000C023 Other Datasheet PDF

Epcos

7 Pages / 0.1 MByte

B82111E0000 Documents

B82111E0000C025 Datasheet PDF

Epcos

EPCOS B82111E0000C025 Axial Leaded High Frequency Inductor, B82111E Series, 100µH, 1A, 0.65Ω, ± 20%, 55MHz

B82111E0000C022 Datasheet PDF

Epcos

EPCOS B82111E0000C022 Axial Leaded High Frequency Inductor, B82111E Series, 22μH, 3A, 0.07Ω, ± 20%, 110MHz

B82111E0000C021 Datasheet PDF

Epcos

EPCOS B82111E0000C021 Axial Leaded High Frequency Inductor, B82111E Series, 12μH, 4A, 0.04Ω, ± 20%, 140MHz

B82111E0000C024 Datasheet PDF

Epcos

EPCOS B82111E0000C024 Axial Leaded High Frequency Inductor, B82111E Series, 56µH, 1.5A, 0.3Ω, ± 20%, 70MHz

B82111E0000C027 Datasheet PDF

Epcos

EPCOS B82111E0000C027 Axial Leaded High Frequency Inductor, B82111E Series, 470μH, 300mA, 6.5Ω, ± 20%, 25MHz

B82111E0000C026 Datasheet PDF

Epcos

EPCOS B82111E0000C026 Axial Leaded High Frequency Inductor, B82111E Series, 220μH, 500mA, 2.6Ω, ± 20%, 32MHz

B82111E0000C023 Datasheet PDF

Epcos

EPCOS B82111E0000C023 Axial Leaded High Frequency Inductor, B82111E Series, 40µH, 2A, 0.18Ω, ± 20%, 90MHz

B82111E0000C020 Datasheet PDF

Epcos

EPCOS B82111E0000C020 Axial Leaded High Frequency Inductor, B82111E Series, 7μH, 6A, 0.02Ω, ± 20%, 180MHz

B82111E0000C021 Datasheet PDF

TDK-EPC

VHF Choke Wirewound 12uH 20% 100kHz Ferrite 4A 40mOhm DCR AXL T/R

B82111E0000C022 Datasheet PDF

TDK-EPC

VHF Choke Wirewound 22uH 20% 100kHz Ferrite 3A 70mOhm DCR AXL T/R
