BPV10NF
Part 3D Model
$ 0.331

BPV10NF Datasheet PDF - Vishay Semiconductor

Manufacturer:
Vishay Semiconductor
Category:
Photodiodes
Case Package:
T-1
Description:

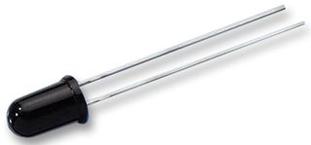

VISHAY BPV10NF Photodiode, 20°, 1nA, 940nm, T-1 3/4 (5mm)
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
BPV10NF Datasheet (5 Pages)
Package Outline Dimension on4 Page
Part Numbering System on1 Page
BPV10NF Datasheet PDF (5 Pages)
View Datasheet
Click page to view the detail

BPV10NF Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Capacitance
11.0 pF
Case/Package
T-1
Rise/Fall Time
0.0025 ns
Breakdown Voltage
60.0 V
Number of Positions
2 Position
Forward Voltage
1.3 V
Wavelength
940 nm
Viewing Angle
40°
Peak Wavelength
940 nm
Power Dissipation
215 mW
Rise Time
2.5 ns
Bandwidth
100 MHz
Forward Current
50 mA
Maximum Forward Voltage (Max)
1.3 V
Fall Time
2.5 ns
Fall Time (Max)
2.5 ns
Fall Time (Max)
2.5 ns
Operating Temperature (Max)
100 ℃
Operating Temperature (Min)
-40 ℃
Power Dissipation (Max)
215 mW
View Datasheet >

BPV10NF Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bulk
Size-Length
5.75 mm
Size-Width
5.75 mm
Size-Height
8.6 mm
Lead Length
26.3 mm
Operating Temperature
-40℃ ~ 100℃
View Datasheet >

BPV10NF Documents

BPV10NF Datasheet
Vishay Semiconductor
5 Pages / 0.12 MByte
BPV10NF Other Datasheet PDF
Vishay Semiconductor
6 Pages / 0.11 MByte
BPV10NF Other References
Vishay Semiconductor
1 Pages / 0.16 MByte

BPV10 Documents

BPV10 Datasheet PDF
VISHAY
Photodiode PIN Chip 920nm 0.55A/W Sensitivity 2Pin T-1 3/4 Bulk
BPV10 Datasheet PDF
Vishay Semiconductor
VISHAY BPV10 Photodiode, 20°, 1nA, 920nm, T-1 3/4 (5mm)
BPV10 Datasheet PDF
Vishay Siliconix
BPV10 PIN Diode, 50mA, 60V, 2Pin T-1-3/4
BPV10 Datasheet PDF
ATMEL
PIN Photodiode, PLASTIC, 2Pin
BPV10NF Datasheet PDF
VISHAY
940nm 2.5ns ± 20° T-1 3/4 5mm High Speed Silicon PIN Photodiode
BPV10NF Datasheet PDF
Vishay Semiconductor
VISHAY BPV10NF Photodiode, 20°, 1nA, 940nm, T-1 3/4 (5mm)
BPV10NF Datasheet PDF
Vishay Intertechnology
Optoelectronic Device,
BPV10NF Datasheet PDF
Visay
High Speed Silicon PIN Photodiode
BPV10F Datasheet PDF
VISHAY
Infrared-Optimized Photodiode,600mA/W RESPONSIVITY,T-1 3/4
BPV10NF Datasheet PDF
ATMEL
PIN Photodiode, PLASTIC, 2Pin
