BPW96B Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Phototransistor

Case Package:

T-1

Description:

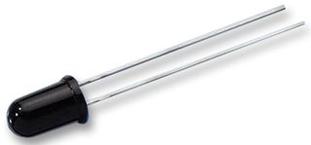

Phototransistor; λp max:830nm; 70V; 20°; Lens: transparent; Ø:5mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

BPW96B Datasheet (5 Pages)

BPW96B Datasheet PDF (5 Pages)

View Datasheet

Click page to view the detail

BPW96B Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

T-1

Number of Positions

2 Position

Wavelength

850 nm

Viewing Angle

20°

Peak Wavelength

850 nm

Power Dissipation

0.15 W

Power Consumption

150 mW

Rise Time

2 µs

Fall Time

2.3 µs

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-40 ℃

Power Dissipation (Max)

150 mW

View Datasheet >

BPW96B Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Material

Silicon

Size-Height

8.6 mm

Operating Temperature

-40℃ ~ 100℃

View Datasheet >

BPW96B Environmental

BPW96B Export Classifications

BPW96B Function Overview

BPW96B Documents

BPW96B Datasheet

VISHAY

5 Pages / 0.1 MByte

BPW96B Other Datasheet PDF

VISHAY

6 Pages / 0.1 MByte

BPW96 Documents

BPW96 Datasheet PDF

Vishay Semiconductor

PHOTOTRANSISTOR NPN 5MM CLEAR

BPW96C Datasheet PDF

VISHAY

Phototransistor; λp max:850nm; 70V; 20°; Lens: transparent; Ø:5mm

BPW96B Datasheet PDF

VISHAY

Phototransistor; λp max:830nm; 70V; 20°; Lens: transparent; Ø:5mm

BPW96B Datasheet PDF

Vishay Semiconductor

BPW96 Series 850nm ± 20° Through Hole Silicon NPN Phototransistor - T-1 3/4

BPW96C Datasheet PDF

Vishay Semiconductor

VISHAY BPW96C Phototransistor, 850nm, 20°, 150mW, 2Pins, T-1 3/4 (5mm)

BPW96A Datasheet PDF

Vishay Semiconductor

Phototransistors NPN Phototransistor 70V 150mW 850nm

BPW96A Datasheet PDF

VISHAY

Phototransistor IR Chip Silicon 850nm 2Pin T-1 3/4

BPW96A Datasheet PDF

ATMEL

Photo Transistor, 850nm

BPW96B Datasheet PDF

ATMEL

Photo Transistor, 850nm

BPW96C Datasheet PDF

ATMEL

Photo Transistor, 850nm
