BSP 452 E6327 Datasheet PDF - Infineon

Manufacturer:

Infineon

Category:

Hot Swap & Power Distribution

Case Package:

SOT-223

Description:

Power Switch ICs - Power Distribution SMART HI SIDE SWITCH

Pictures:

3D Model

Symbol

Footprint

Pinout

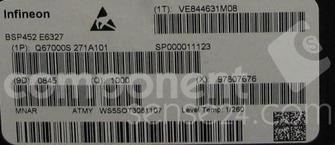

Product Pictures

Documentation:

BSP 452 E6327 Datasheet (10 Pages)

Package Outline Dimension on8 Page

Part Numbering System on1 Page

BSP 452 E6327 Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

BSP 452 E6327 Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

4 Pin

Voltage Rating (DC)

40.0 V

Current Rating

2.40 A

Case/Package

SOT-223

Number of Outputs

1 Output

Supply Current

1 mA

Drain to Source Voltage (Vds)

40.0 V

Continuous Drain Current (Ids)

2.40 A

Output Current (Min)

0.7 A

Power Dissipation (Max)

1800 mW

View Datasheet >

BSP 452 E6327 Size & Package

TYPE

DESCRIPTION

Packaging

Tape

Operating Temperature

-40℃ ~ 150℃

View Datasheet >

BSP 452 E6327 Environmental

BSP 452 E6327 Documents

BSP 452 E6327 Datasheet

Infineon

10 Pages / 0.17 MByte
