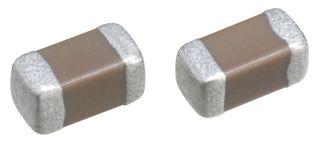

C1608C0G1H103J Datasheet PDF - TDK

Manufacturer:

TDK

Category:

Ceramic Capacitors

Case Package:

0603

Description:

Cap Ceramic 0.01uF 50V C0G 5% Pad SMD 0603 125℃ T/R

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

C1608C0G1H103J Datasheet (56 Pages)

Part Numbering System on2 Page 3 Page 23 Page 24 Page 25 Page

C1608C0G1H103J Datasheet PDF (56 Pages)

View Datasheet

Click page to view the detail

C1608C0G1H103J Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

2 Pin

Voltage Rating (DC)

50.0 V

Capacitance

10000 PF

Capacitance Tolerance

±5 %

Case/Package (SI)

1608

Case/Package

0603

Dielectric Characteristic

C0G/NP0

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

50 V

View Datasheet >

C1608C0G1H103J Size & Package

TYPE

DESCRIPTION

Packaging

Tape & Reel (TR)

Size-Length

1.60 mm

Size-Width

0.8 mm

Size-Height

0.8 mm

Dielectric Material

Ceramic Multilayer

View Datasheet >

C1608C0G1H103J Environmental

C1608C0G1H103J Documents

C1608C0G1H103J Datasheet

TDK

56 Pages / 0.53 MByte

C1608C0G1H103J Product Catalog

TDK

7 Pages / 0.17 MByte

C1608C0G1H103 Documents

C1608C0G1H103J080AA Datasheet PDF

TDK

0603 10nF ±5% 50V C0G

C1608C0G1H103JT000N Datasheet PDF

TDK

0603 10nF ±5% 50V C0G

C1608C0G1H103K080AA Datasheet PDF

TDK

0603 10nF ±10% 50V C0G

C1608C0G1H103J Datasheet PDF

TDK

Cap Ceramic 0.01uF 50V C0G 5% Pad SMD 0603 125℃ T/R

C1608C0G1H103KT000N Datasheet PDF

TDK

C1608C0G1H103JT Datasheet PDF

TDK

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

C1608C0G1H103J080AE Datasheet PDF

TDK

Multilayer Ceramic Chip Capacitors

Part Datasheet PDF Search
