C3D06065I Datasheet PDF - Wolfspeed

Manufacturer:

Wolfspeed

Category:

Schottky Diodes

Case Package:

TO-220-2

Description:

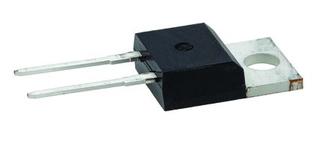

Silicon Carbide Schottky Diode, Z-Rec 650V Series, Single, 650V, 13A, 15NC, TO-220

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

C3D06065I Datasheet (3 Pages)

C3D06065I Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

C3D06065I Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

TO-220-2

Power Rating

100 W

Load Current

6 A

Forward Voltage

1.7V @6A

Power Dissipation

45.5 W

Forward Current

13 A

Max Forward Surge Current (Ifsm)

63 A

Maximum Forward Voltage (Max)

2.4 V

Forward Current (Max)

13 A

Operating Temperature (Max)

150 ℃

Operating Temperature (Min)

-55 ℃

Junction Temperature (Max)

175 ℃

View Datasheet >

C3D06065I Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Each

Size-Length

10.25 mm

Size-Width

4.72 mm

Size-Height

15.74 mm

Operating Temperature

55℃ ~ 175℃

View Datasheet >

C3D06065I Environmental

C3D06065I Function Overview

C3D06065I Documents

C3D06065I Datasheet

Wolfspeed

3 Pages / 0.62 MByte

C3D06065I Other Datasheet PDF

Wolfspeed

6 Pages / 0.92 MByte

C3D06065 Documents

C3D06065A Datasheet PDF

CREE

Diode Schottky 650V 19A 2Pin(2+Tab) TO-220

C3D06065A Datasheet PDF

Wolfspeed

WOLFSPEED C3D06065A Silicon Carbide Schottky Diode, Z-Rec 650V Series, Single, 650V, 9A, 15NC, TO-220

C3D06065E Datasheet PDF

CREE

Diode: Schottky rectifying; SMD; 650V; 6A; 100W; TO252-2

C3D06065E Datasheet PDF

Wolfspeed

WOLFSPEED C3D06065E Silicon Carbide Schottky Diode, Z-Rec 650V Series, Single, 650V, 20A, 15NC, TO-252

C3D06065I Datasheet PDF

CREE

Diode Schottky 650V 13A 2Pin TO-220

C3D06065I Datasheet PDF

Wolfspeed

Silicon Carbide Schottky Diode, Z-Rec 650V Series, Single, 650V, 13A, 15NC, TO-220

C3D06065E-TR Datasheet PDF

Wolfspeed

ZRECTM 6A, 650V SIC SCHOTTKY DIO
