C4D15120A Datasheet PDF - Wolfspeed

Manufacturer:

Wolfspeed

Category:

Schottky Diodes

Case Package:

TO-220-2

Description:

Silicon Carbide Schottky Diode, SiC, Z-Rec 1200V Series, Single, 1.2kV, 41A, 77.5NC, TO-220

Pictures:

3D Model

Symbol

Footprint

Pinout

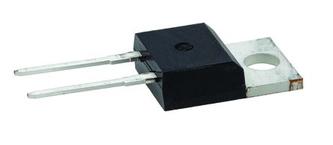

Product Pictures

Documentation:

C4D15120A Datasheet (6 Pages)

C4D15120A Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

TO-220-2

Power Rating

192 W

Load Current

15 A

Forward Voltage

1.8V @15A

Power Dissipation

192 W

Forward Current

41 A

Max Forward Surge Current (Ifsm)

100 A

Maximum Forward Voltage (Max)

3 V

Forward Current (Max)

41 A

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-55 ℃

Junction Temperature (Max)

175 ℃

View Datasheet >

C4D15120A Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Each

Size-Length

10.41 mm

Size-Width

4.69 mm

Size-Height

15.62 mm

View Datasheet >

C4D15120A Environmental

C4D15120A Function Overview

C4D15120A Documents

C4D15120A Datasheet

Wolfspeed

6 Pages / 0.68 MByte

C4D15120A Other Datasheet PDF

Wolfspeed

6 Pages / 0.78 MByte

C4D15120 Documents

C4D15120A Datasheet PDF

CREE

Diode Schottky 1200V 41A 2Pin TO-220 Tube

C4D15120A Datasheet PDF

Wolfspeed

Silicon Carbide Schottky Diode, SiC, Z-Rec 1200V Series, Single, 1.2kV, 41A, 77.5NC, TO-220

C4D15120D Datasheet PDF

Wolfspeed

WOLFSPEED C4D15120D Silicon Carbide Schottky Diode, Z-REC Series, Dual Common Cathode, 1.2kV, 49A, 37NC, TO-247

C4D15120D Datasheet PDF

CREE

Diode Schottky SiC 1.2kV 49A 3Pin(3+Tab) TO-247
