CA56-12SURKWA Datasheet PDF - Kingbright

Manufacturer:

Kingbright

Category:

7 Segment Displays

Case Package:

DIP

Description:

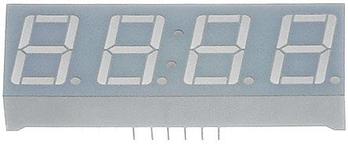

KINGBRIGHT CA56-12SURKWA 7-Segment LED Display, Mechanically Rugged, Red, 20mA, 1.95V, 24mcd, 4, 14.22mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

CA56-12SURKWA Datasheet (6 Pages)

Package Outline Dimension on1 Page

CA56-12SURKWA Datasheet PDF (6 Pages)

View Datasheet

Click page to view the detail

CA56-12SURKWA Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

12 Pin

Case/Package

DIP

Forward Voltage

1.95 V

Wavelength

630 nm

Luminous Intensity

24 mcd

Peak Wavelength

650 nm

Power Consumption

75 mW

Character Size-Height

14.2 mm

Forward Current

20 mA

Maximum Forward Voltage (Max)

2.35 V

Forward Current (Max)

30 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

View Datasheet >

CA56-12SURKWA Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Each

Size-Width

50.3 mm

Operating Temperature

-40℃ ~ 85℃

View Datasheet >

CA56-12SURKWA Environmental

CA56-12SURKWA Function Overview

CA56-12SURKWA Documents

CA56-12SURKWA Datasheet

Kingbright

6 Pages / 0.46 MByte

CA56-12SURKWA Other Datasheet PDF

Kingbright

6 Pages / 0.65 MByte

CA5612 Documents

CA56-12SRWA Datasheet PDF

Kingbright

Display: LED; 7-segment; 14mm; red; 8-24mcd; anode; Dim:19x50.3mm

CA56-12GWA Datasheet PDF

Kingbright

KINGBRIGHT CA56-12GWA 7-Segment LED Display, Mechanically Rugged, Green, 20mA, 2.2V, 4.5mcd, 4, 14.22mm

CA56-12SEKWA Datasheet PDF

Kingbright

KINGBRIGHT CA56-12SEKWA 7-Segment LED Display, Mechanically Rugged, Orange, 20mA, 2.1V, 41mcd, 4, 14.22mm

CA56-12EWA Datasheet PDF

Kingbright

KINGBRIGHT CA56-12EWA 7-Segment LED Display, Mechanically Rugged, Red, 20mA, 2V, 2.4mcd, 4, 14.22mm

CA56-12CGKWA Datasheet PDF

Kingbright

KINGBRIGHT CA56-12CGKWA 7-Segment LED Display, Mechanically Rugged, Green, 20mA, 2.1V, 12mcd, 4, 14.22mm

CA56-12SURKWA Datasheet PDF

Kingbright

KINGBRIGHT CA56-12SURKWA 7-Segment LED Display, Mechanically Rugged, Red, 20mA, 1.95V, 24mcd, 4, 14.22mm

CA56-12YWA Datasheet PDF

Kingbright

KINGBRIGHT CA56-12YWA 7-Segment LED Display, Mechanically Rugged, Yellow, 20mA, 2.1V, 2.3mcd, 4, 14.22mm

CA56-12SYKWA Datasheet PDF

Kingbright

7-Seg Display 4-Digit 14.2mm Yellow
