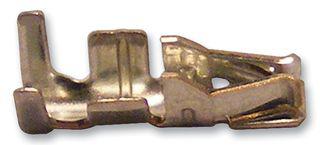

DF11-2428SC
$ 0.063

DF11-2428SC Datasheet PDF - Hirose Electric

Manufacturer:
Hirose Electric
Category:
Crimp Contacts & Accessories
Case Package:
24-28 AWG
Description:
Contact; female; 28÷24AWG; DF11; tinned; crimped; for cable; 2mm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
DF11-2428SC Datasheet (14 Pages)
Part Numbering System on3 Page
DF11-2428SC Datasheet PDF (14 Pages)
View Datasheet
Click page to view the detail

DF11-2428SC Specifications

TYPE
DESCRIPTION
Number of Contacts
24 Contact
Gender
Female
Wire Gauge
24AWG ~ 28AWG
Contact Plating
Tin
Current Rating
2 A
Insulation Resistance
1000MΩ @500VDC
Case/Package
24-28 AWG
Contact Resistance
30 mΩ
Current Rating (Max)
2 A
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-30 ℃
Voltage Rating (Max)
250 VAC
Voltage Rating
250 V
Maximum Contact Resistance (Max)
30 mΩ
View Datasheet >

DF11-2428SC Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bag
Color
Black
Contact Material
Phosphor Copper
Size-Length
6.9 mm
Size-Width
1.35 mm
Operating Temperature
-30℃ ~ 85℃
View Datasheet >

DF11-2428SC Documents

DF11-2428SC Datasheet
Hirose Electric
14 Pages / 0.52 MByte
DF11-2428SC Other Datasheet PDF
Hirose Electric
28 Pages / 2.02 MByte
DF11-2428SC Drawing Diagrams
Hirose Electric
1 Pages / 0.03 MByte
DF11-2428SC Features Description Parametrics
Hirose Electric
1 Pages / 0.1 MByte
DF11-2428SC Product Catalog
Hirose Electric
14 Pages / 0.39 MByte
DF11-2428SC Other References
Hirose Electric
1 Pages / 0.18 MByte

DF112428 Documents

DF11-2428SCF Datasheet PDF
Hirose Electric
Contact, DF11 Series, Socket, 28AWG, 24AWG, Crimp, Phosphor Copper
DF11-2428SCFA Datasheet PDF
Hirose Electric
DF11 Series 24 to 28AWG Crimp Female Socket Contact
DF11-2428SC Datasheet PDF
Hirose Electric
Contact; female; 28÷24AWG; DF11; tinned; crimped; for cable; 2mm
DF11-2428SCA Datasheet PDF
Hirose Electric
Contact, DF11 Series, Socket, 28AWG, 24AWG, Crimp, Phosphor Copper
DF11-2428SCFA(04) Datasheet PDF
Hirose Electric
CONN SOCKET 24-28AWG CRIMP GOLD
DF11-2428SCFB(03) Datasheet PDF
Hirose Electric
Conn F POS Cable Mount
