ECEA1HN220U Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

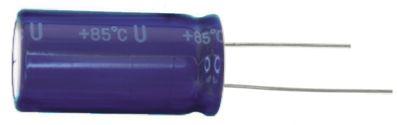

22mF 50V 90mA Φ8mm 11.5mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

ECEA1HN220U Datasheet (3 Pages)

ECEA1HN220U Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

ECEA1HN220U Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

50.0 V

Capacitance

22 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

3.5 mm

Ripple Current

90 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating

50 V

View Datasheet >

ECEA1HN220U Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Length

11.5 mm

Size-Height

11.5 mm

Size-Diameter

8.00 mm

Dielectric Material

Aluminum Electrolytic

Operating Temperature

-40℃ ~ 85℃

Minimum Packing Quantity

1000

Life (Hours)

2000h @85℃

View Datasheet >

ECEA1HN220U Environmental

ECEA1HN220U Function Overview

ECEA1HN220U Documents

ECEA1HN220U Datasheet

Panasonic

3 Pages / 0.15 MByte

ECEA1HN220U Other Datasheet PDF

Panasonic

4 Pages / 0.17 MByte

ECEA1HN220 Documents

ECE-A1HN220U Datasheet PDF

Panasonic

Cap Aluminum Lytic 22uF 50V 20% (8 X 11.5mm) Radial 3.5mm 90mA 2000H 85℃ Bulk

ECE-A1HN220UB Datasheet PDF

Panasonic

Cap Aluminum 22uF 50V 20% (8 X 11.5mm) Radial 5mm 90mA 2000H 85℃ Ammo Pack

ECEA1HN220U Datasheet PDF

Panasonic

22mF 50V 90mA Φ8mm 11.5mm

Part Datasheet PDF Search
