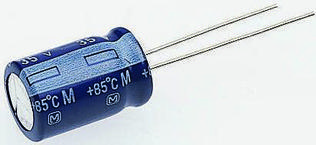

EEUED2G220S
$ 1.024

EEUED2G220S Datasheet PDF - Panasonic

Manufacturer:
Panasonic
Category:
Aluminum Electrolytic Capacitors
Case Package:
Radial, CAN
Description:
22mF 400V 240mA Φ16mm 20mm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
EEUED2G220S Datasheet (3 Pages)
EEUED2G220S Datasheet PDF (3 Pages)
View Datasheet
Click page to view the detail

EEUED2G220S Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Voltage Rating (DC)
400 V
Capacitance
22 µF
Capacitance Tolerance
±20 %
Case/Package
Radial, CAN
Pin Pitch
7.5 mm
Ripple Current
600 mA
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-25 ℃
Voltage Rating
400 V
View Datasheet >

EEUED2G220S Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Unknown
Packaging
Each
Size-Length
20.0 mm
Size-Height
20 mm
Size-Diameter
16.0 mm
Operating Temperature
-25℃ ~ 105℃
Minimum Packing Quantity
250
Life (Hours)
10000h @105℃
View Datasheet >

EEUED2G220S Documents

EEUED2G220S Datasheet
Panasonic
3 Pages / 0.15 MByte
EEUED2G220S Other Datasheet PDF
Panasonic
10 Pages / 0.43 MByte

EEUED2G220 Documents

EEU-ED2G220 Datasheet PDF
Panasonic
Cap Aluminum Lytic 22uF 400V 20% (12.5 X 25mm) Radial 5mm 500mA 10000H 105℃ Bulk
EEUED2G220 Datasheet PDF
Panasonic
Cap Aluminum Lytic 22uF 400V 20% (12.5 X 25mm) Radial 5mm 500mA 10000H 105
EEUED2G220S Datasheet PDF
Panasonic
22mF 400V 240mA Φ16mm 20mm
EEU-ED2G220S Datasheet PDF
Panasonic
Cap Aluminum Lytic 22uF 400V 20% (16 X 20mm) Radial 7.5mm 600mA 10000H 105℃ Bulk
EEUED2G220B Datasheet PDF
Panasonic
22mF 400V 200mA Φ12.5mm 25mm
EEU-ED2G220SB Datasheet PDF
Panasonic
Cap Aluminum Lytic 22uF 400V 20% (16 X 20mm) Radial 7.5mm 600mA 10000H 105℃ Ammo Pack
EEU-ED2G220B Datasheet PDF
Panasonic
Cap Aluminum Lytic 22uF 400V 20% (12.5 X 25mm) Radial 5mm 500mA 10000H 105℃ Ammo Pack
