EEUEE2C101S Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Single Capacitors

Description:

100mF 160V 1700mA Φ16mm 20mm

Pictures:

3D Model

Symbol

Footprint

Pinout

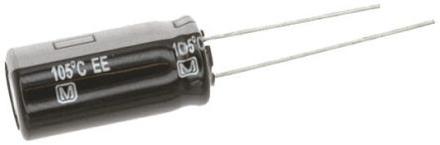

Product Pictures

Documentation:

EEUEE2C101S Datasheet (3 Pages)

Part Numbering System on1 Page

EEUEE2C101S Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

EEUEE2C101S Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

160 V

Capacitance

100 µF

Capacitance Tolerance

±20 %

Pin Pitch

7.5 mm

Ripple Current

1700 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-25 ℃

Voltage Rating

160 V

View Datasheet >

EEUEE2C101S Environmental

EEUEE2C101S Function Overview

EEUEE2C101S Documents

EEUEE2C101S Datasheet

Panasonic

3 Pages / 0.08 MByte

EEUEE2C101S Other Datasheet PDF

Panasonic

4 Pages / 0.09 MByte

EEUEE2C101 Documents

EEU-EE2C101 Datasheet PDF

Panasonic

Cap Aluminum Lytic 100uF 160V 20% (12.5 X 25mm) Radial 5mm 1660mA 10000H 105℃ Bulk

EEUEE2C101 Datasheet PDF

Panasonic

100mF 160V 1660mA Φ12.5mm 25mm

EEU-EE2C101S Datasheet PDF

Panasonic

Cap Aluminum Lytic 100uF 160V 20% (16 X 20mm) Radial 7.5mm 1700mA 10000H 105℃ Bulk

EEUEE2C101S Datasheet PDF

Panasonic

100mF 160V 1700mA Φ16mm 20mm

EEUEE2C101B Datasheet PDF

Panasonic

Cap Aluminum 100uF 160V 20% (12.5 X 25mm) Radial 5mm 1660mA 10000 hr 105℃ Ammo Pack

EEUEE2C101SB Datasheet PDF

Panasonic

Cap Aluminum 100uF 160V 20% (16 X 20mm) Radial 7.5mm 1700mA 10000 hr 105℃ Ammo Pack

EEU-EE2C101B Datasheet PDF

Panasonic

Cap Aluminum Lytic 100uF 160V 20% (12.5 X 25mm) Radial 5mm 1660mA 10000H 105℃ T/R

EEU-EE2C101SB Datasheet PDF

Panasonic

Cap Aluminum Lytic 100uF 160V 20% (16 X 20mm) Radial 7.5mm 1700mA 10000H 105℃ T/R
