EEUFC1H122S Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

1.2F 50V 2610mA Φ18mm 25mm

Pictures:

3D Model

Symbol

Footprint

Pinout

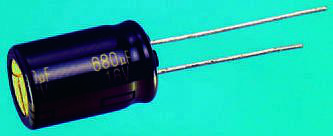

Product Pictures

Documentation:

EEUFC1H122S Datasheet (10 Pages)

EEUFC1H122S Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFC1H122S Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

50.0 V

Capacitance

1200 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

7.5 mm

Ripple Current

2610 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

50 V

View Datasheet >

EEUFC1H122S Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Length

25.0 mm

Size-Height

25 mm

Size-Diameter

18.0 mm

Operating Temperature

-55℃ ~ 105℃

Life (Hours)

5000h @105℃

View Datasheet >
