$ 1.656

EEUFC1H152L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Single Capacitors

Description:

1.5F 50V 2790mA Φ16mm 35.5mm

Pictures:

3D Model

Symbol

Footprint

Pinout

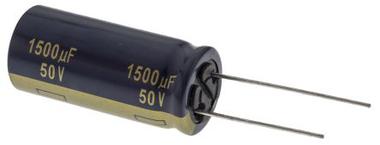

Product Pictures

Documentation:

EEUFC1H152L Datasheet (10 Pages)EEUFC1H152L User Reference Manual Guide (6 Pages)

EEUFC1H152L Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFC1H152L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

50.0 V

Operating Voltage

50 VDC

Capacitance

1500 µF

Capacitance Tolerance

±20 %

Pin Pitch

7.5 mm

Ripple Current

2790 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

50 V

View Datasheet >

EEUFC1H152L Environmental

EEUFC1H152L Function Overview

EEUFC1H152L Documents

EEUFC1H152L Datasheet

Panasonic

10 Pages / 0.2 MByte

EEUFC1H152L User Reference Manual Guide

Panasonic

6 Pages / 0.14 MByte

EEUFC1H152L Other Datasheet PDF

Panasonic

10 Pages / 0.19 MByte

EEUFC1H152L Notice File

Panasonic

1 Pages / 0.09 MByte

EEUFC1H152 Documents

EEUFC1H152L Datasheet PDF

Panasonic

1.5F 50V 2790mA Φ16mm 35.5mm

EEU-FC1H152L Datasheet PDF

Panasonic

Cap Aluminum Lytic 1500uF 50V 20% (16 X 35.5mm) Radial 7.5mm 2790mA 5000H 105℃ Automotive Bulk
