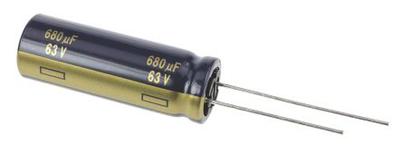

EEUFC1J681L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Single Capacitors

Description:

680mF 63V 2265mA Φ12.5mm 35mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

EEUFC1J681L Datasheet (10 Pages)

EEUFC1J681L Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFC1J681L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

63.0 V

Capacitance

680 µF

Capacitance Tolerance

±20 %

Pin Pitch

5 mm

Ripple Current

2265 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

63 V

View Datasheet >

EEUFC1J681L Environmental

EEUFC1J681L Function Overview

EEUFC1J681L Documents

EEUFC1J681L Datasheet

Panasonic

10 Pages / 0.2 MByte

EEUFC1J681L Other Datasheet PDF

Panasonic

17 Pages / 0.77 MByte

EEUFC1J681L Notice File

Panasonic

1 Pages / 0.09 MByte

EEUFC1J681 Documents

EEUFC1J681 Datasheet PDF

Panasonic

680mF 63V 2160mA Φ16mm 25mm

EEU-FC1J681 Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (16 X 25mm) Radial 7.5mm 2160mA 5000H 105℃ Automotive Bulk

EEU-FC1J681S Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (18 X 20mm) Radial 7.5mm 2290mA 5000H 105℃ Automotive Bulk

EEUFC1J681S Datasheet PDF

Panasonic

680mF 63V 2290mA Φ18mm 20mm

EEU-FC1J681L Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (12.5 X 35mm) Radial 5mm 2265mA 5000H 105℃ Automotive Bulk

EEU-FC1J681B Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (16 X 25mm) Radial 7.5mm 2160mA 5000H 105℃ Automotive Ammo

EEUFC1J681L Datasheet PDF

Panasonic

680mF 63V 2265mA Φ12.5mm 35mm

EEU-FC1J681SB Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (18 X 20mm) Radial 7.5mm 2290mA 5000H 105℃ Automotive Ammo

EEUFC1J681B Datasheet PDF

Panasonic

680mF 63V 2160mA Φ16mm 25mm

EEUFC1J681SB Datasheet PDF

Panasonic

680mF 63V 2290mA Φ18mm 20mm
