EEUFC1J681S Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

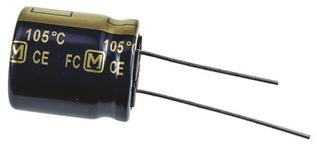

680mF 63V 2290mA Φ18mm 20mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

EEUFC1J681S Datasheet (3 Pages)

Part Numbering System on1 Page

EEUFC1J681S Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

EEUFC1J681S Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

63.0 V

Capacitance

680 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

7.5 mm

Ripple Current

2290 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

63 V

View Datasheet >

EEUFC1J681S Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Bulk

Size-Length

20.0 mm

Size-Height

20 mm

Size-Diameter

18.0 mm

Dielectric Material

Aluminum Electrolytic

Operating Temperature

-55℃ ~ 105℃

Life (Hours)

5000h @105℃

View Datasheet >

EEUFC1J681S Environmental

EEUFC1J681S Export Classifications

EEUFC1J681S Function Overview

EEUFC1J681S Documents

EEUFC1J681S Datasheet

Panasonic

3 Pages / 0.05 MByte

EEUFC1J681S Other Datasheet PDF

Panasonic

17 Pages / 0.77 MByte

EEUFC1J681S Notice File

Panasonic

1 Pages / 0.09 MByte

EEUFC1J681 Documents

EEUFC1J681 Datasheet PDF

Panasonic

680mF 63V 2160mA Φ16mm 25mm

EEU-FC1J681 Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (16 X 25mm) Radial 7.5mm 2160mA 5000H 105℃ Automotive Bulk

EEU-FC1J681S Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (18 X 20mm) Radial 7.5mm 2290mA 5000H 105℃ Automotive Bulk

EEUFC1J681S Datasheet PDF

Panasonic

680mF 63V 2290mA Φ18mm 20mm

EEU-FC1J681L Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (12.5 X 35mm) Radial 5mm 2265mA 5000H 105℃ Automotive Bulk

EEU-FC1J681B Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (16 X 25mm) Radial 7.5mm 2160mA 5000H 105℃ Automotive Ammo

EEUFC1J681L Datasheet PDF

Panasonic

680mF 63V 2265mA Φ12.5mm 35mm

EEU-FC1J681SB Datasheet PDF

Panasonic

Cap Aluminum Lytic 680uF 63V 20% (18 X 20mm) Radial 7.5mm 2290mA 5000H 105℃ Automotive Ammo

EEUFC1J681B Datasheet PDF

Panasonic

680mF 63V 2160mA Φ16mm 25mm

EEUFC1J681SB Datasheet PDF

Panasonic

680mF 63V 2290mA Φ18mm 20mm

Part Datasheet PDF Search
