EEUFC2A221 Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

220mF 100V 1080mA Φ16mm 25mm

Pictures:

3D Model

Symbol

Footprint

Pinout

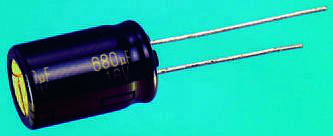

Product Pictures

Documentation:

EEUFC2A221 Datasheet (10 Pages)EEUFC2A221 User Reference Manual Guide (6 Pages)

EEUFC2A221 Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFC2A221 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

100 V

Operating Voltage

100 VDC

Capacitance

220 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

7.5 mm

Ripple Current

1170 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

100 V

View Datasheet >

EEUFC2A221 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Length

25.0 mm

Size-Height

25 mm

Size-Diameter

16.0 mm

Dielectric Material

Aluminum Electrolytic

Operating Temperature

-55℃ ~ 105℃

Minimum Packing Quantity

250

Life (Hours)

5000 h

View Datasheet >
