EEUFK0J102L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

1F 6.3V 860mA Φ8mm 15mm

Pictures:

3D Model

Symbol

Footprint

Pinout

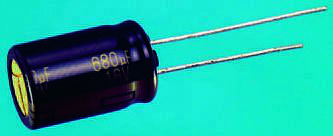

Product Pictures

Documentation:

EEUFK0J102L Datasheet (10 Pages)

EEUFK0J102L Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFK0J102L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

6.30 V

Capacitance

1000 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

3.5 mm

Ripple Current

860 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

6.3 V

View Datasheet >

EEUFK0J102L Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Height

15 mm

Size-Diameter

8.00 mm

Dielectric Material

Aluminum Electrolytic

Operating Temperature

-55℃ ~ 105℃

Minimum Packing Quantity

1000

Life (Hours)

3000h @105℃

View Datasheet >

EEUFK0J102L Environmental

EEUFK0J102L Export Classifications

EEUFK0J102L Function Overview

EEUFK0J102L Documents

EEUFK0J102L Datasheet

Panasonic

10 Pages / 0.2 MByte

EEUFK0J102L Other Datasheet PDF

Panasonic

12 Pages / 0.5 MByte

EEUFK0J102 Documents

EEUFK0J102 Datasheet PDF

Panasonic

1F 6.3V 900mA Φ10mm 12.5mm

EEUFK0J102L Datasheet PDF

Panasonic

1F 6.3V 860mA Φ8mm 15mm
