EEUFK0J332L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

3.3F 6.3V 2140mA Φ10mm 30mm

Pictures:

3D Model

Symbol

Footprint

Pinout

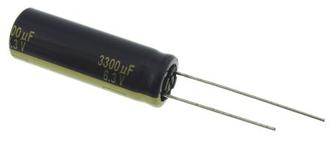

Product Pictures

Documentation:

EEUFK0J332L Datasheet (5 Pages)

EEUFK0J332L Datasheet PDF (5 Pages)

View Datasheet

Click page to view the detail

EEUFK0J332L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

6.30 V

Capacitance

3300 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

5 mm

Ripple Current

2140 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

6.3 V

View Datasheet >

EEUFK0J332L Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Height

30 mm

Size-Diameter

10.0 mm

Dielectric Material

Aluminum Electrolytic

Operating Temperature

-55℃ ~ 105℃

Minimum Packing Quantity

500

Life (Hours)

4000h @105℃

View Datasheet >

EEUFK0J332L Environmental

EEUFK0J332L Function Overview

EEUFK0J332L Documents

EEUFK0J332L Datasheet

Panasonic

5 Pages / 0.25 MByte

EEUFK0J332L Other Datasheet PDF

Panasonic

5 Pages / 0.1 MByte

EEUFK0J332L Notice File

Panasonic

1 Pages / 0.09 MByte

EEUFK0J332 Documents

EEUFK0J332 Datasheet PDF

Panasonic

3.3F 6.3V 1890mA Φ12.5mm 20mm

EEUFK0J332L Datasheet PDF

Panasonic

3.3F 6.3V 2140mA Φ10mm 30mm

EEUFK0J332S Datasheet PDF

Panasonic

3.3F 6.3V 1800mA Φ16mm 15mm
