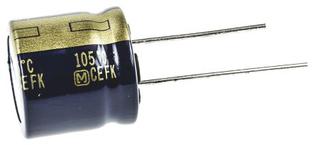

EEUFK1A272S
$ 1.787

EEUFK1A272S Datasheet PDF - Panasonic

Manufacturer:
Panasonic
Category:
Aluminum Electrolytic Capacitors
Case Package:
Radial, CAN
Description:
2.7F 10V 1800mA Φ16mm 15mm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
EEUFK1A272S Datasheet (5 Pages)
EEUFK1A272S Datasheet PDF (5 Pages)
View Datasheet
Click page to view the detail

EEUFK1A272S Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Voltage Rating (DC)
10.0 V
Capacitance
2700 µF
Capacitance Tolerance
±20 %
Case/Package
Radial, CAN
Pin Pitch
7.5 mm
Ripple Current
1800 mA
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-55 ℃
Voltage Rating
10 V
View Datasheet >

EEUFK1A272S Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Unknown
Packaging
Each
Size-Height
15 mm
Size-Diameter
16.0 mm
Dielectric Material
Aluminum Electrolytic
Operating Temperature
-55℃ ~ 105℃
Minimum Packing Quantity
250
Life (Hours)
5000h @105℃
View Datasheet >

EEUFK1A272S Documents

EEUFK1A272S Datasheet
Panasonic
5 Pages / 1.65 MByte
EEUFK1A272S Other Datasheet PDF
Panasonic
5 Pages / 0.1 MByte
EEUFK1A272S Notice File
Panasonic
1 Pages / 0.09 MByte

EEUFK1A272 Documents

EEUFK1A272 Datasheet PDF
Panasonic
2.7F 10V 1890mA Φ12.5mm 20mm
EEU-FK1A272 Datasheet PDF
Panasonic
Cap Aluminum Lytic 2700uF 10V 20% (12.5 X 20mm) Radial 5mm 1890mA 5000H 105℃ Automotive Bulk
EEUFK1A272L Datasheet PDF
Panasonic
2.7F 10V 2140mA Φ10mm 30mm
EEUFK1A272S Datasheet PDF
Panasonic
2.7F 10V 1800mA Φ16mm 15mm
EEU-FK1A272L Datasheet PDF
Panasonic
Cap Aluminum Lytic 2700uF 10V 20% (10 X 30mm) Radial 5mm 2140mA 4000H 105℃ Automotive Bulk
EEU-FK1A272S Datasheet PDF
Panasonic
Cap Aluminum Lytic 2700uF 10V 20% (16 X 15mm) Radial 7.5mm 1800mA 5000H 105℃ Automotive Bulk
