EEUFK1C222L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

2.2F 16V 2140mA Φ10mm 30mm

Pictures:

3D Model

Symbol

Footprint

Pinout

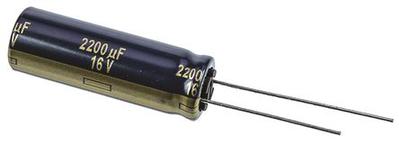

Product Pictures

Documentation:

EEUFK1C222L Datasheet (10 Pages)

EEUFK1C222L Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFK1C222L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

16.0 V

Capacitance

2200 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

5 mm

Ripple Current

2140 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

16 V

View Datasheet >

EEUFK1C222L Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Height

30 mm

Size-Diameter

10.0 mm

Dielectric Material

Aluminum Electrolytic

Operating Temperature

-55℃ ~ 105℃

Minimum Packing Quantity

500

Life (Hours)

4000 h

View Datasheet >

EEUFK1C222L Environmental

EEUFK1C222L Function Overview

EEUFK1C222L Documents

EEUFK1C222L Datasheet

Panasonic

10 Pages / 0.2 MByte

EEUFK1C222L Other Datasheet PDF

Panasonic

5 Pages / 0.1 MByte

EEUFK1C222L Notice File

Panasonic

1 Pages / 0.09 MByte

EEUFK1C222 Documents

EEUFK1C222 Datasheet PDF

Panasonic

2.2F 16V 1890mA Φ12.5mm 20mm

EEU-FK1C222 Datasheet PDF

Panasonic

Cap Aluminum Lytic 2200uF 16V 20% (12.5 X 20mm) Radial 5mm 1890mA 5000H 105℃ Automotive Bulk

EEUFK1C222L Datasheet PDF

Panasonic

2.2F 16V 2140mA Φ10mm 30mm

EEUFK1C222S Datasheet PDF

Panasonic

2.2F 16V 1800mA Φ16mm 15mm
