EEUFK1V561S
$ 0.903

EEUFK1V561S Datasheet PDF - Panasonic

Manufacturer:
Panasonic
Category:
Aluminum Electrolytic Capacitors
Case Package:
Radial, CAN
Description:
560mF 35V 1400mA Φ12.5mm 15mm
Pictures:
3D Model
Symbol
Footprint
Pinout

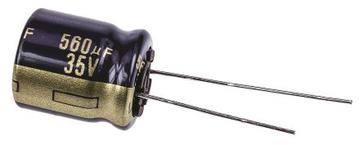

Product Pictures
Documentation:
EEUFK1V561S Datasheet (2 Pages)
Part Numbering System on1 Page
EEUFK1V561S Datasheet PDF (2 Pages)
View Datasheet
Click page to view the detail

EEUFK1V561S Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Voltage Rating (DC)
35.0 V
Capacitance
560 µF
Capacitance Tolerance
±20 %
Case/Package
Radial, CAN
Pin Pitch
5 mm
Ripple Current
1400 mA
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-55 ℃
Voltage Rating
35 V
View Datasheet >

EEUFK1V561S Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Unknown
Packaging
Each
Size-Height
15 mm
Size-Diameter
12.5 mm
Dielectric Material
Aluminum Electrolytic
Operating Temperature
-55℃ ~ 105℃
Minimum Packing Quantity
500
Life (Hours)
5000 h
View Datasheet >

EEUFK1V561S Documents

EEUFK1V561S Datasheet
Panasonic
2 Pages / 0.04 MByte
EEUFK1V561S Other Datasheet PDF
Panasonic
5 Pages / 0.1 MByte
EEUFK1V561S Notice File
Panasonic
1 Pages / 0.09 MByte

EEUFK1V561 Documents

EEUFK1V561 Datasheet PDF
Panasonic
560mF 35V 1490mA Φ10mm 20mm
EEU-FK1V561 Datasheet PDF
Panasonic
Cap Aluminum Lytic 560uF 35V 20% (10 X 20mm) Radial 5mm 1490mA 4000H 105℃ Automotive Bulk
EEUFK1V561S Datasheet PDF
Panasonic
560mF 35V 1400mA Φ12.5mm 15mm
EEU-FK1V561B Datasheet PDF
Panasonic
Cap Aluminum Lytic 560uF 35V 20% (10 X 20mm) Radial 5mm 1490mA 4000h 105°C Automotive Ammo
EEU-FK1V561S Datasheet PDF
Panasonic
Cap Aluminum Lytic 560uF 35V 20% (12.5 X 15mm) Radial 5mm 1400mA 5000H 105℃ Automotive Bulk
