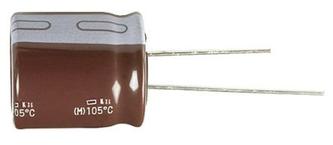

EEUFR1H821S
$ 0.554

EEUFR1H821S Datasheet PDF - Panasonic

Manufacturer:
Panasonic
Category:
Aluminum Electrolytic Capacitors
Case Package:
Radial, CAN
Description:
820mF 50V 2870mA Φ16mm 20mm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
EEUFR1H821S Datasheet (5 Pages)
EEUFR1H821S Datasheet PDF (5 Pages)
View Datasheet
Click page to view the detail

EEUFR1H821S Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Voltage Rating (DC)
50.0 V
Capacitance
820 µF
Capacitance Tolerance
±20 %
Case/Package
Radial, CAN
Pin Pitch
7.5 mm
Ripple Current
2870 mA
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-40 ℃
Accuracy
±20 %
Voltage Rating
50 V
View Datasheet >

EEUFR1H821S Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Unknown
Packaging
Each
Size-Height
20 mm
Size-Diameter
16.0 mm
Dielectric Material
Aluminum Electrolytic
Operating Temperature
-40℃ ~ 105℃
Minimum Packing Quantity
250
Life (Hours)
10000h @105℃
View Datasheet >

EEUFR1H821S Documents

EEUFR1H821S Datasheet
Panasonic
5 Pages / 0.12 MByte
EEUFR1H821S Other Datasheet PDF
Panasonic
5 Pages / 0.12 MByte

EEUFR1H821 Documents

EEUFR1H821S Datasheet PDF
Panasonic
820mF 50V 2870mA Φ16mm 20mm
EEUFR1H821L Datasheet PDF
Panasonic
820mF 50V 3270mA Φ12.5mm 35mm
EEU-FR1H821L Datasheet PDF
Panasonic
Cap Aluminum Lytic 820uF 50V 20% (12.5 X 35mm) Radial 5mm 3270mA 10000H 105℃ Bulk
EEU-FR1H821SB Datasheet PDF
Panasonic
Cap Aluminum Lytic 820uF 50V 20% (16 X 20mm) Radial 7.5mm 2870mA 10000H 105℃ Ammo
EEUFR1H821SB Datasheet PDF
Panasonic
820mF 50V 2870mA Φ16mm 20mm
EEU-FR1H821S Datasheet PDF
Panasonic
Cap Aluminum Lytic 820uF 50V 20% (16 X 20mm) Radial 7.5mm 2870mA 10000H 105℃ Bulk
