EEUHD1H102 Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

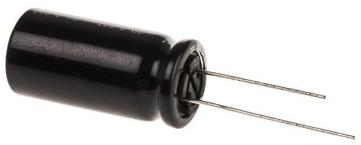

Cap Aluminum Lytic 1000uF 50V 20% (12.5 X 25mm) Radial 5mm 950mA 2000H 105C Bulk

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

EEUHD1H102 Datasheet (10 Pages)

Part Numbering System on3 Page

EEUHD1H102 Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUHD1H102 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

50.0 V

Capacitance

1000 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

5 mm

Ripple Current

950 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

50 V

View Datasheet >

EEUHD1H102 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Height

25 mm

Size-Diameter

12.5 mm

Operating Temperature

-55℃ ~ 105℃

Life (Hours)

2000h @105℃

View Datasheet >

EEUHD1H102 Environmental

EEUHD1H102 Function Overview

EEUHD1H102 Documents

EEUHD1H102 Datasheet

Panasonic

10 Pages / 0.18 MByte

EEUHD1H102 Other Datasheet PDF

Panasonic

3 Pages / 0.12 MByte

EEUHD1H102 Notice File

Panasonic

1 Pages / 0.09 MByte

EEUHD1 Documents

EEUHD1E222 Datasheet PDF

Panasonic

Cap Aluminum 2200uF 25V 20% (12.5 X 20mm) Radial 5mm 1090mA 2000 hr 105℃ Bulk

EEU-HD1E222 Datasheet PDF

Panasonic

Cap Aluminum Lytic 2200uF 25V 20% (12.5 X 20mm) Radial 5mm 1090mA 2000H 105℃ Bulk

EEU-HD1H220 Datasheet PDF

Panasonic

Cap Aluminum Lytic 22uF 50V 20% (5 X 11mm) Radial 2.5mm 65mA 1000H 105℃ Bulk

EEU-HD1V472 Datasheet PDF

Panasonic

Cap Aluminum Lytic 4700uF 35V 20% (16 X 31.5mm) Radial 7.5mm 1910mA 2000H 105℃ Bulk

EEUHD1H100 Datasheet PDF

Panasonic

Cap Aluminum 10uF 50V 20% (5 X 11mm) Radial 2.5mm 39mA 1000 hr 105℃ Bulk

EEU-HD1V101B Datasheet PDF

Panasonic

Cap Aluminum Lytic 100uF 35V 20% (6.3 X 11.2mm) Radial 5mm 150mA 1000H 105℃ Ammo

EEUHD1H102 Datasheet PDF

Panasonic

Cap Aluminum Lytic 1000uF 50V 20% (12.5 X 25mm) Radial 5mm 950mA 2000H 105C Bulk

EEUHD1E682 Datasheet PDF

Panasonic

Cap Aluminum 6800uF 25V 20% (16 X 31.5mm) Radial 7.5mm 2040mA 2000 hr 105℃ Bulk

EEU-HD1E102B Datasheet PDF

Panasonic

Cap Aluminum Lytic 1000uF 25V 20% (10 X 16mm) Radial 5mm 680mA 2000H 105℃ Ammo

EEUHD1C153 Datasheet PDF

Panasonic

Cap Aluminum 15000uF 16V 20% (18 X 35.5mm) Radial 7.5mm 2210mA 2000 hr 105℃ Bulk
