EEUTP1E471L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

470mF 25V 1060mA Φ8mm 20mm

Pictures:

3D Model

Symbol

Footprint

Pinout

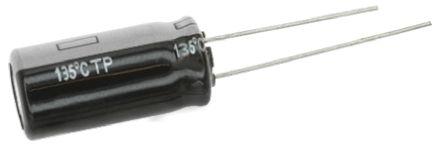

Product Pictures

Documentation:

EEUTP1E471L Datasheet (2 Pages)

EEUTP1E471L Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

EEUTP1E471L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

25.0 V

Capacitance

470 µF

Equivalent Series Resistance (ESR)

0.067 Ω

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

3.5 mm

Ripple Current

760 mA

Operating Temperature (Max)

135 ℃

Operating Temperature (Min)

-40 ℃

Accuracy

±20 %

Voltage Rating

25 V

View Datasheet >

EEUTP1E471L Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Bulk

Size-Height

20 mm

Size-Diameter

8.00 mm

Operating Temperature

-40℃ ~ 135℃

Minimum Packing Quantity

1000

Life (Hours)

2000 h

View Datasheet >

EEUTP1E471L Environmental

EEUTP1E471L Function Overview

EEUTP1E471L Documents

EEUTP1E471L Datasheet

Panasonic

2 Pages / 0.08 MByte

EEUTP1E471L Other Datasheet PDF

Panasonic

2 Pages / 0.07 MByte

EEUTP1E471L Notice File

Panasonic

1 Pages / 0.09 MByte

EEUTP1E471 Documents

EEUTP1E471 Datasheet PDF

Panasonic

470mF 25V 1100mA Φ10mm 16mm

EEU-TP1E471 Datasheet PDF

Panasonic

Cap Aluminum Lytic 470uF 25V 20% (10 X 16mm) Radial 5mm 0.13Ω 945mA 2000H 135℃ Automotive Bulk

EEU-TP1E471L Datasheet PDF

Panasonic

Cap Aluminum Lytic 470uF 25V 20% (8 X 20mm) Radial 3.5mm 0.067Ω 760mA 1000H 135℃ Automotive Bulk

EEU-TP1E471LB Datasheet PDF

Panasonic

Cap Aluminum Lytic 470uF 25V 20% (8 X 20mm) Radial 5mm 0.067Ω 760mA 1000H 135℃ Automotive Ammo

EEUTP1E471L Datasheet PDF

Panasonic

470mF 25V 1060mA Φ8mm 20mm

EEU-TP1E471B Datasheet PDF

Panasonic

Cap Aluminum Lytic 470uF 25V 20% (10 X 16mm) Radial 5mm 0.13Ω 945mA 2000H 135℃ Automotive Ammo

EEUTP1E471LB Datasheet PDF

Panasonic

470mF 25V 1060mA Φ8mm 20mm

EEUTP1E471B Datasheet PDF

Panasonic

470mF 25V 1100mA Φ10mm 16mm
