EEUTP1V271L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Single Capacitors

Description:

270mF 35V 1060mA Φ8mm 20mm

Pictures:

3D Model

Symbol

Footprint

Pinout

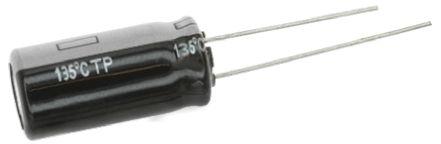

Product Pictures

Documentation:

EEUTP1V271L Datasheet (2 Pages)

EEUTP1V271L Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

EEUTP1V271L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

35.0 V

Capacitance

270 µF

Equivalent Series Resistance (ESR)

0.067 Ω

Capacitance Tolerance

±20 %

Ripple Current

760 mA

Operating Temperature (Max)

135 ℃

Operating Temperature (Min)

-40 ℃

Accuracy

±20 %

Voltage Rating

35 V

View Datasheet >

EEUTP1V271L Environmental

EEUTP1V271L Function Overview

EEUTP1V271L Documents

EEUTP1V271L Datasheet

Panasonic

2 Pages / 0.14 MByte

EEUTP1V271L Other Datasheet PDF

Panasonic

2 Pages / 0.07 MByte

EEUTP1V271L Notice File

Panasonic

1 Pages / 0.09 MByte

EEUTP1V271 Documents

EEUTP1V271 Datasheet PDF

Panasonic

270mF 35V 1100mA Φ10mm 16mm

EEU-TP1V271 Datasheet PDF

Panasonic

Cap Aluminum Lytic 270uF 35V 20% (10 X 16mm) Radial 5mm 0.13Ω 945mA 2000H 135℃ Automotive Bulk

EEU-TP1V271LB Datasheet PDF

Panasonic

Cap Aluminum Lytic 270uF 35V 20% (8 X 20mm) Radial 5mm 0.067Ω 760mA 1000H 135℃ Automotive Ammo

EEU-TP1V271L Datasheet PDF

Panasonic

Cap Aluminum Lytic 270uF 35V 20% (8 X 20mm) Radial 3.5mm 0.067Ω 760mA 1000H 135℃ Automotive Bulk

EEUTP1V271L Datasheet PDF

Panasonic

270mF 35V 1060mA Φ8mm 20mm

EEU-TP1V271B Datasheet PDF

Panasonic

Cap Aluminum Lytic 270uF 35V 20% (10 X 16mm) Radial 5mm 0.13Ω 945mA 2000H 135℃ Automotive Ammo

EEUTP1V271B Datasheet PDF

Panasonic

270mF 35V 1100mA Φ10mm 16mm

EEUTP1V271LB Datasheet PDF

Panasonic

270mF 35V 1060mA Φ8mm 20mm
