EKMG160ELL101ME11D Datasheet PDF - UA(United Automation)

Manufacturer:

UA(United Automation)

Category:

Aluminum Electrolytic Capacitors

Description:

CAP ALUM 100uF 20% 16V RADIAL

Pictures:

3D Model

Symbol

Footprint

Pinout

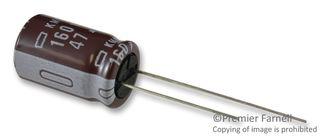

Product Pictures

Documentation:

EKMG160ELL101ME11D Datasheet (3 Pages)

Part Numbering System on1 Page

EKMG160ELL101ME11D Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

EKMG160ELL101ME11D Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Capacitance

100 μF

Capacitance Tolerance

±20 %

Pin Pitch

2 mm

Ripple Current

110mA @120Hz

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

16 V

View Datasheet >

EKMG160ELL101ME11D Environmental

EKMG160ELL101ME11D Documents

EKMG160ELL101ME11D Datasheet

UA(United Automation)

3 Pages / 0.25 MByte

EKMG160ELL101ME11D Other References

UA(United Automation)

1 Pages / 0.1 MByte

EKMG160ELL101ME11 Documents

EKMG160ELL101ME11D Datasheet PDF

Chemi-Con

Cap Aluminum Lytic 100uF 16V 20% (5 X 11mm) Radial 2mm 110mA 1000H 105℃ Bulk

EKMG160ELL101ME11D Datasheet PDF

UA(United Automation)

CAP ALUM 100uF 20% 16V RADIAL
